Another Project, Joy...

Had to happen. Because I don't have enough stuff I want to do...

I want to automate the garden. I've worked to move the vege garden and I'd really like to idiot-proof (read "me-proof") it because some days the spoons are in short supply and I don't have the energy to water - and in this climate that's a disaster, yellow leaves, stunted growth, if it happens twice in a row we lose a crop of something.

OTOH, things here get waterlogged really quickly and that can drown plants too. We end up with a lake at one end of the garden. And yep, even the reticulation can do that. Ask me how I know that. 😸 (Spoiler: The temporary mechanical timer I was using at the time got stuck on. For two hours.)

Yeah. A lake.
That's a rubber boot
I'm wearing.

Being a bit geeky has advantages. I decided to program up an ESP8266 (D1Mini) as my retic controller, and because I know stuff, I gave it three circuits to manage, and timed them so they run A-B-C-A-B-A in short bursts so that circuit A runs three bursts during the night's run, B gets two bursts, and C gets just one squirt.

My rationale is that when I water anything by hand, I notice that the first time I water for the evening, water pools but doesn't really spread, so I've always been in the habit of going round twice, and the second time the water soaks in properly. I.e. several short waterings is better than one longer one.

Caveat: Once soil is conditioned and has plenty of organic matter in it, water "wicks" sideways just fine and you may be wondering what I'm going on about. But before the soil develops the organic component - and, more importantly, after a few days where I hadn't for various reasons been able to water - it develops some water repellant properties. I theorise that the microbes near the surface get killed by heat and their wax does this.

Solution: Mulch is the key, but it's not always everywhere. Again - spoons, priorities. Also the only mulcher I've been able to get hold of was a complete waste of the money and time I put into trying to recondition it and has since gone on to become spare parts.

Anyhow - several smaller waterings in succession works better for me. It's probably better for most gardens but a pain to do with off-the-shelf reticulation controllers and so I'm making my own. And it means I save water, instead of watering everything for 30 minutes and having water pool everywhere and dry spots, I'll water three separate circuits for an hour, get the right amount of water for each situation (and consume only 1/3 as much water for double the time, saving 1/3 of what would have just been runoff in one watering) and as I'm currently doing this manually using my phone clock and three inline taps, I've already seen how well stuff thrives under this regime.

Hence, watering in shorter bursts. It works really well. Ten minutes on, then off while the next circuit gets a burst, etc. But then a thought hit me. What if I have this all automated - and it's rained that day? I could just put a simple moisture type rain sensor out and latch an input if it got wet that day. (But it wouldn't tell me how much rain had fallen. Hmm... )

Also, checking soil moisture wouldn't hurt. And I could log that stuff and also monitor how much water goes through the system. Temperature. Humidity, as that affects transpiration rates.

Insolation. If I was going to power this with a solar panel (and who wouldn't, given they already HAD a largeish solar panel and lead acid battery powering other stuff, and that kind of data directly affects plant growth) I could measure how much sunlight we'd get here day by day by season by season.

Feature creep was in full swing. . .

I decided to ditch the D1Mini and got a NodeMCU Nano form-factor thing and that's arriving in a few weeks. The board is very affordable at Aliexpress. And I've always been a bit of a data wonk, the more I/O pins you have, the more data you can collect, the better you can make things work. And - rainfall figures. . . THAT'S what I'd been thinking about! There are tipping bucket rain sensors out there that can tell me how much rain's fallen!

Tipping bucket rain sensors are cool. A little inverted "T" shaped toggle sits under a funnel with a known surface area. One side of the T fills with water because it always falls to the left or the right, that side fills up - and it tips because that side now has a few ml of water in it. As it tips, it falls to that side, empties, and stays that way because it's overbalanced. And now the middle upright of the T diverts the dripping incoming water to the other side, until it fills up, overbalances to that side, and the process repeats. Along the way, you trip a switch of some kind or ratchet a counter mechanism. In my case, you whiz a magnet past a Hall effect sensor and count pulses, then add them up in the MCU.

Tipping bucket rain sensors are cool. Until you go to the least expensive online site you know of, type in "Tipping bucket rain sensor" - and . . . Expletive deleted . . . When that one sensor can cost more than the rest of the retic system including the solenoids and plumbing, unaffordable, I have to do without it. But. . . I have a 3D printer. And people have made these things, there are models online on all the major model collection sites.

And yet. . . I'm a masochist, I have to DIY.  A couple of hours in Tinkercad and I have my own version. The only bits I really need to print are the bits inside the box. The tipping bucket, mounting, and parts to hold a small neodymium magnet and Hall effect sensor. The box around it and the funnel can be anything at all.

Here's the secret to calibrating it:

Here's how rainfall is measured. You make a straight-sided container, and the depth of water that collects in the container (in millimetres) is the total rainfall. For any size container as long as the sides are straight and parallel.

With a gauge, you look at the surface area of the device, work out how many millilitres are required to produce one millimetre depth of water in it, and then test your tipping buckets to see how many clicks it would take to measure that much water slowly poured into it.  Which, if I use a 10cm x 10cm square funnel, will need 10ml to form a 1ml depth of water and I am before having actually printed it, estimating 4ml per bucket so I'll be dividing my clicks by 2.5 to get a reading of 1millimetre depth.

The point is to know to within a tenth of a millilitre how much water goes through your particular buckets, because then you can put it under any sized collector and work out what you have to divide your total clicks by to get to the millimetres figure once you know the area. You can even put the funnel out somewhere and run some tubing back to your counter. If you do that, remember to provide a way out for the water once it's been through the tipping buckets!

Here are some of the elements of the reticulation system:

Firstly, I'm only using drip hoses and drip nozzles that produce a tiny low spray around them. That way I can pile some mulch over the drip hoses to keep the water out of the wind and sun, and the drip nozzles can (hopefully) stick up that bit more and spray over the mulch, spreading the water farther. All those sprays and mist sprays are prone to two things, wind drift and evaporation. Fine sprays like that are perfect inside greenhouses and long grow polytunnels but they waste half your water budget due to those two failings.

Img1: Description below.

Quick description:

Thes relate to the numbered subphotos above in Img1:

• A - These are the tips I'm standardising on for almost every purpose, and also this 4mm tubing. (As you can see, prices are good compared to our good ole Aussie hardware stores.)
• B - shows the circle one of these can water. (Hand for scale.)
• C - this is about the lowest setting I can get from them, handy when watering a small pot, but also slightly hard to get right so I may replace the ones in small pots with a more regulatable version.
• D - this is a similar tip that's easier to regulate (but not by much) and that I bought a few years ago and am trialling. I think they'll be replaced though.
• E - is one of the weep holes in the weeping hose. They're spaced 300mm apart and produce a steady drip over a wide range of pressure.
• F - one other thing, if you can afford it, putting these taps everywhere can be a bonus. They allow you to turn a small section (one raised bed or one series of pots) off to conserve water while you're working on them or even do some really rough water regulation by partly turning them off.

The background is three raised beds and several pots around the south end of the garden after winter but before spring cleanup. (You're looking for the 3rd raised bed, arent you? It's at the extreme right behind the rush screen...)

• G - One thing not shown is the watering into the worm feeder tubes.

You should probably refer to this older post about point G above. I made some worm feeders that go into each raised garden bed, and they're just 100mm PVC pipe stuck about 30-40cm into the ground with a lid on them. There are holes in the side down the bottom tolet worms in and out, and I toss compost, clippings, prunings, and other worm food down there, then put the lid back on. Worms wander in and out and eat their fill, then wander out - hopefully to the vegetable roots - and leave their nutritious castings (aka worm poo) there for the plants. In the process they also aerate the soil and allow water to penetrate better.

That was fine but the tubes needed to be opened too many times to add water to keep the worms' tucker moist, and they hate being disturbed. So I used the same line as feeds all the vegetables in pots (they get one or two bursts of watering each night) and drilled a tiny hole in each lid, poked some 4mm tubing inside, and put a red dripper in. Now I can just top up the food (once every few weeks/months) and the rest of the time they have peace and safety down there.

---

Footer

As always, please share this article and my others like it, go to my News Stand to see all my other posts and share links to the News Stand and any articles you found interesting, and if you can, donate here or here and find out here why it's important. Or subscribe to my once a week newsletter and stay in the loop.

Chat with me on Mastodon >>

CANON --- icalCNC Has To Be Reposted

I Don't Know Why.

But these two posts seem to have (eventually, finally) broken this blog's Google Search ranking. I don't know why or how, but the dreaded "Alternative page with proper cano(I'm going to break the word here in just in case)nical tag" error appeared. (No, I had no idea what that meant. I'm not an SEO wonk. It took me an hour of Googling to find out wtf was going on and I still don't really know...)

Apparently it means two of my pages are "cano------nical" versions of one another sort of thing. Now mind you, this blog is on Blogspot.com, a Google property. It does all manner of stuff with my content and spits out a blog page. Whether it decides one version of something in "canon----ical" or not is magic mirrors to me. I certainly don't go whacking (<link rel="cano---nical" href="https://somedamnpage.okay?"> links into the html of the page because I never get to see that html.

Since I have no control over what Google's pieces of - regrettable code - shoved into those pages, I've decided to put both posts together into a new post and delete the original posts. Can't throw an error if the pages are deleted... Deleting them removes the possibility that somehow Google Search was reading a title as a link rel cano-etc. Stupid as that may sound, I'm out of other ideas.

Secondly, I'm also going to go through the body text of both posts and edit the cano-word in case Search had that in it's sights. MANUALLY, because the blogger (blogspot) editor doesn't allow search/replace.

Here (re-)goes:

The Adventure Continues

I've finally printed the draft X - Y motion components I started to mention in this past article. It's a bit stressful here due to some health concerns so I've been doing this more as a way to keep myself occupied than as a serious push to make the machine.

Anyhow - back to the bits. I've designed with cheaply obtainable parts in mind such as four wheel gantry plates, 2020 V slot, and PLA. To make my cunning plans I've also printed at 50% infill and 4 walls rather than the 100% / 4 I'll use for the finished thing.

I'm also only using 300mm lengths of 2020 because that'll still give around 180x180x(??? Not sure on Z capacity yet but between 40mm and 60mm should be possible) and I don't want too much 'give' in the structure.

So since I only printed one Y carriage / gantry post, I can only give an approximation of what I hope will be. The post is printed in three parts because it fits more easily on most printer beds that way, and seems to be pretty solid under the loads I've been able to put on it.

As you can see, the gantry plate runs outside the Y rail. Due to the width of the carriages on the X rails, that space wouldn't be available as work surface anyway, so may as well compact the machine and also reduce the leverage the gantry carriage can exert. Anyway - first, the three parts of the post:

• Lower carriage (S Carriage) holds the 4wheel carriage plate and lifts the rest of the post up to a useful distance. It can be printed thicker, wider, but preferably not taller so it can be printed on more printers.
• Upper carriage (CarriageExtn) brings us up to the height needed.
• Gantry Rail Plate (GantryPlate) goes inside and does two things, it bolts together and stiffens the other two parts, and it has sockets at various locations that the end of a 2020 will fit snugly in.

Eventually, a bracket for a NEMA17 stepper motor will be included in the final print, for now I still need to work out how I want that to go.

You'll see four sockets, at this stage they were semi-randomly laid out because I didn't have a 4wheel plate to get exact measurements. There are two sockets side by side at the top and ditto around 110mm lower. The further apart I can get them vertically, the heavier a spindle I can mount here without twisting in the fore-aft direction due to the angular pressure when lowering the tool onto the work.

Having them left and right means you can print the same GantryPlate for either side. And by placing the rails off to one edge, that also means that the angular pressure transmitted down to the Y carriages is less because the spindle will be more centred.

The plan is to find the best vertical distance between the two X rails so that the two 4wheel plates can be joined together with some kind of simple aluminium plate that can be manufactured with simple hand tools. (Because I don't have a CNC to machine them yet. . .) The spindle elevator slider will then get mounted onto that.

Another view, this time from the 'rear' of the machine shows the magnificent 4wheel plates. I was originally going to use the PLA and just mount 4 wheels with the relevant hardware until I tried it and noticed that even with wide washers to spread the load out, the amount of give in the wheel axles was - pardon me - unforgiveable. (I know, I know. . . I'll see myself out. . .)

Things that still need to be designed and done.

I can now come up with some logical distance between the X rails so that standard spindle slides can be used.

I can slightly widen the posts for a bit more strength. The X axis stepper motor can be mounted on one Upper Carriage Ext'n and a pulley on the other with holes for a 6mm T2 timing belt to go through to move the spindle carriage. I'm thinking of once again raiding AliExpress for two angle plates designed for that purpose and preferably able to use the same mounting holes for simplicity. (So that there needs only be one patter for Upper Carriage Ext'n.) While inexpensive, this is still coming out of my pension so when you see the links below to subscribe to the newsletter and maybe also donate one-time or a regular patronage, please consider it. . .

I'll design and print a mounting post that can go at each of the Y rails and fix them to the wooden machine base, with all the bits needed to mount another NEMA17 and some way to get it to drive both sides in sync, so either two servos in parallel or a solid axle and second set of gear.

A mount for the GRBL board, manual control panel, and power supply will come in handy.

Design decisions, why.

I know that a lot of designs move the bed in the Y direction à la 3D printer, and that does make it far more simple for the Y direction. But I'm up for the challenge (😹 he said, weeping furiously at his bravado and arrogance) and also this does allow me to apply two stepper motors if I need the extra grunt.

Using PLA was a conscious decision too, not just what I had to hand. Comparisons between PLA and PETG and ABS show that modern PLA is up there with ABS in strength, and as I said I've 'designed' (and I use that term negligently and frivolously) this to eliminate pressure from the tool to the plastic so we'll see how good I was.

6mm T2 belts. Yeah. This may become one of the first things that has to be upgraded. But I've seen Ivan use belts on some really big machines and they seem to be very accurate and repeatable, and I've seen what abuse a 6mm belt can survive when things went wrong on the Ender3 Pro . . .

Everything being cheap. This is one of my design aims. The aluminium 2020 extrusion was very cheap, and looks lightweight. Hence my desire to reduce stresses on it too. One other result though was that the hole down the middle was a 5mm hole. Generally they're 3mm or 4mm but if you're extruding ali and make that hole bigger then that's a smidgen of material you save per metre...

That turned to an advantage for me because I could tap it to 6mm and so get a much stronger bolt holding things together. So when you get to yours, either drill it out to 5mmm or tap to the size you have and use thinner hardware.

You may know that I'm hoping to start a website for people to get into plastic recycling at home and on the cheap, not so much because I think it'll stem the tide of plastics but because it'll raise awareness of just how much of this shit we still use without a qualm. So this has to be able to be made by a guy with old guy eyesight and manual dexterity, on a pension, and then be readily able to make whatever's needed for the recycling project.

On that subject.

I started looking at plastic recycling after watching a few of Dave Hakkens' Youtube videos on Precious Plastic which is now on the One Army channel. So I may even go to their website with my machines and so forth, not sure yet. At least it'll get some coverage there.

But as I went along, I discovered that recycling plastic isn't the ultimate goal. Public awareness is. Taking plastic out of the waste stream for a second, third, fourth, and subsbequent life - that is. Because if we can keep some of it out of the waste stream for a few more years, several things will happen:

• Because people will start demanding that their products are delivered in recycled plastics, or in some other packaging that's biodegradeable.
• Governments will start clamping down on making 'virgin' plastic, which is plastic made from petrochemicals. Corporations are going to find it cheaper to finally bite the bullet and take their crap back and recycle it.
• And other people like myself and maybe yourself will start developing technology to recover plastic out of the environment, recycle it, or break it down cleanly and safely.

The upshot though will be that free range plastics in the environment will decrease.

My other thought on that subject.

So why the CNC machine? My hope is that once a person gets involved they, just like me, will want to do other recycling. Aluminium is the second-most commercially recycled metal on Earth after lead. (I think I recall seeing that somewhere.) But it's also easy to smelt aluminium at home with some basic gear and a lot of care and caution. And aluminium can be milled flat and then used to make molds for injection molding . . .

Once you can use injection molding you can turn a whole lot of waste plastic into identical products at speed. (i.e. if you wanted to make promotional items or money-making products, this is a quick way to do so.)

And once you're comfortable with that, you can also machine a new print head for your printer that can used pelletised recycled plastic, or a recycling tool to make filament for your printer from recycled plastics.

Pickle's a bit embarrassed but I have to add this bit to the end:

Footer

So please support me. If you can, take a look at my News Stand where you'll see live updated links to everything I publish; or take a subscription to my weekly newsletter where you'll receive the same information in your inbox for free; Or contact me via the webform or directly email me if you'd like to help; or donate either directly or at my Ko-Fi page for the price of a coffee. Or even make a regular monthly donation there. (Check why you should donate here.)

----------------------------------------------------------------

CAN_CNC New Working Title

Thanks go to Canon for making a printer I couldn't use any parts from, ultimately. So now CANO----Nical_CNC has had to become CAN_CNC and I'm kind of glad to use those Canon parts for a laser engraver or something later on. For now I'd like CAN_CNC to get to the point of being a real desktop CNC with enough grunt to cut (or at least mangle) aluminium so I'll be able to make plastic injection molds.

I started with a draft mode print, horrible layer heights, only 2 walls, 20% infill and some blue PLA made by XingTongZhiLian and obtained from Amazon a while back. Just as well because the first drafts used a fair chunk of the spool, despite looking like this:

Okay, the first (white) print is a motor mount for using the Canon parts and has now been set aside for another project, but the blue print was a first draft of the left hand side of the desktop CNC, the more interesting side with the most weight on it.

Even that first print consisting of three parts (print bed size limitations) showed right away that there wasn't enough stability in the  lower carriage alone to prevent movement. Needs two carriages, possibly even spaced 50mm apart to provide that kind of mechanical advantage. Also, there was a fit issue between the two tower parts. The first draft stood for ages as the only work to be done, before I got a second wind a week ago.

Made With Tinkercad.

Yep. I humbly admit that I am a total fumble-arse when it comes to CAD software, and because I started with Second Life building, Tinkercad is a lot more knowable to me. "Start with a prim . . ." works for me and I could build quite well. TC is missing a few features like making solids physical i.e. you can't drop a cube on top of another cube, which is sometimes handy.

Also, using TC leaves a LOT of conjoined parts and sometimes they create odd issues within an .STL. So my plan is to do as I'm doing now and make a lot of draft models first, then replicate each part once I have the final bugs ironed out. I've used this in the past, but a 30min draft print using 20g is a far cry from a 5hr 120g sort of print, that's one tenth of a spool and A) I HATE wasting plastic and B) I really can't afford to recycle it (YET!!!) and C) I can't really afford to throw away filament because I don't sell anything to cover the cost.

So parts I make are constrained a bit, but as I gain skill with TC and dial in my TC to RL capability this'll improve and so will the parts. But for now, the second drafts are good for honing my skills.

Second Draft.

This is draft 2 and there are a few gotchas that will need to be fixed.

So the second draft has proven really useful. I've spotted a few gotchas and indicated them on that image above. First though, a quick tour of Ca _cNc. (That's "CAN_CNC" with white ant holes  for making a slightly lighter and faster print. . .)

ALSO: I know the filament looks really P I N K ! ! ! but it's actually a purplish colour in real life, it just seems to defeat the white balance on any cameras I've photographed it with.

We're looking at the left hand tower from the left. Just a bit up and to the left of D is a bushing block for the Y rail that the towers will run back and forwards on. At the moment this is on the floor but there are two blocks that those bushes will attach to, and that'll lift it another 40mm or so. I didn't bother to print those yet because I need to work from the spindle and tool backwards so that I can make sure it'll carry the weight without any give. Looking like a big ask at the moment but I'll get there.

Now to the points:

A: Around the motor mount, things are really tight. I stepped the top section out at this point to let the X rail extrusions sit aft of the centre of the Y carriage (more on this later) and it's good, but I added all sorts of internal means for stiffening this joint and they're all crap, whereas the stepped-out section is great but could actually be made longer and all the smart-assery with joint stiffeners can be eliminated and that'll make it more rigid too. And leads to:

B: See that mis-matched join? That's why the join bits need to go, this side too needs to be stepped out, and the overlap made longer.

C: This curvy edge is great but needs serious stiffeners. As you can see there's a little stiffener from lower right up and to the left that I cut for lightweighting the draft but even if it were there, it won't have the necessary oomph to hold a 400W 30,000rpm router spindle. Luckily I can add a bit more meat here in the next (and hopefully last) draft.

D: It's in orange as it isn't a bug, not really. I just didn't attach the second set of carriage wheels as I need to stretch the lower section by another 20 - 30mm as I've decided the Y rails will need to just be 400mm to give me room for more stabilising length.

A further thing is that I still haven't designed a suitably tough belt tensioning mechanism for the other ends of the X and Y - Y belts.

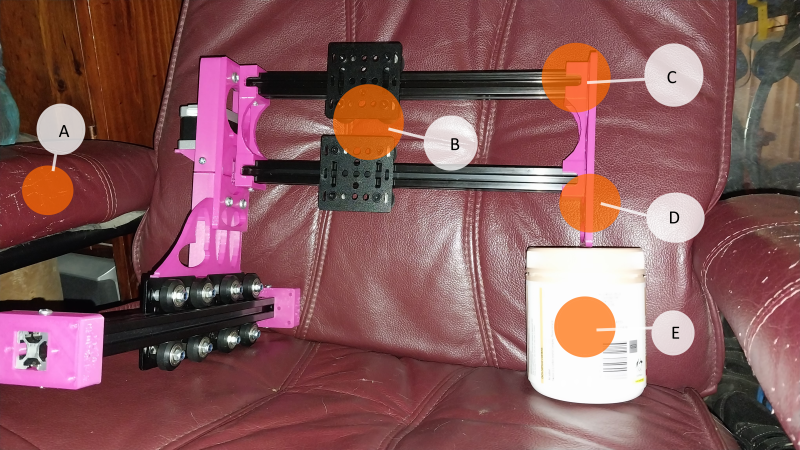

A Better View

This is a better view, Just orange dots here, A: yep we have cats and yep they have no respect for nice things, so we don't have nice things but instead have cats, which are better anyway.

B: I haven't worked out the spindle slide yet but may have to just buy one. Some more on the balance of the X carriage (told you there'd be more) is needed here. The spindle motor and slider will need to sit on those two 4-wheel plates and the centre of the motor (and hence the tool) would have sat forward of the CoG (centre of gravity) of the smaller (remember the blue draft?) tower, and that means that it would have sagged forward at rest and been pushed backwards when the tool makes contact with the work and pushes up.

Moving the X rails back and widening the base of the tower puts the centre of the spindle motor and most of the weight right in between those two 4-wheel plate carriages at the base of the tower. And that means all the fore and aft wobble in the tower will only come about from moving fore and aft, not from the motor and tool weight nor from the force the tools transmits back.

C: These 2020 bushes take up some travel room but also provide some left-right stability, and note the notch in the front faces, these are a feature of both X and Y bushes and allow the belt stopper to slip in and save a few mm of travel. There's also an inverted vee brace that will go from the bottom of the left hand tower to the upper X rail and down to the right hand tower, I won't print this but instead use cheap perforated zinc plated hardware straps from the local hardware and a spacer, which will stop L-R wobble.

There may also be a second set of braces from the lower 2020 rail. They'll each require a tee nut inside the vee groove at the rear of the  rail, a spacer to allow the carriage wheel axles to pass, and then the two hardware straps down to mounts on the left and right towers.

D: Still on these two X rail bushes and blocks, a few further mods - have to slightly rework them to strengthen them, make them also project downwards a bit longer for stiffness, and that's about it, they're the second part of this build I'm satisfied with. Oh okay - E: - that's not really the right-hand side of the CNC, it's a jar of sunshine aka vitamin D. It just means I'm happy with progress so far.

End of this stage.

From here on it's going to be a case of iterate and progress. All parts will become much simplified because I'll build each one anew for versions b3.0a onwards. All parts now have a path to final form with just a few redrafts, and then I'll decide a filament to use. Not the material, I'm sticking to PLA, but a colour scheme and where I'll buy it from.

Okay - here are a few more pics.

The first blue draft helped a lot to shape the second.

This piece now has a new future as a brass insert setter and PCB drill, it's actually quite strong. I'll print a base for it that'll allow use as either.
